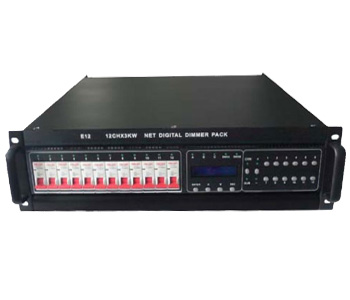

Technical parameters:
(1) power supply: three-phase five wire AC380V plus or minus 10%, 50 hz frequency plus or minus 5%.
(2) the signal interface: digital double DMX - 512 (1990).
(3) power rating: 12 * 3 kw. Each loop maximum output power can be up to 4 kw.
(4) the overall dimensions (mm) : L515 * W485 * H133, single weight: 18 kg.
Function characteristics:
1. At the heart of the thyristor device chip of silicon box is the German original installation import materials, stable and reliable performance.
2. Good heat dissipation device and forced air cooling combined with intelligent environmental control system.
3. Efficient anti-interference choke strong anti-jamming ability, low noise, current rise time 220 us. Us - 450.
4. Signal access: digital double DMX - 512 (1990) input: DMX and DMX B.
5. Dynamic preheat preheat and fixed two way protect the lamps and lanterns.
6. This silicone case with control points and set the dimming function. There are 12 points and 12 sets.
Article 7. The dimming curve: 10. The dimming range of 1% 100%.
8. Three-phase voltage indicator and triggered automatic tracking compensation, the output voltage consistency very well;
9. High marks broken air switch overload and short circuit of dual protection
